Servlet Collaboration

Servlet Collaboration in Java: RequestDispatcher vs sendRedirect

Servlet Collaboration means how one servlet communicates with another servlet and passes data between them. It is a core concept in Java web development, because real applications rarely use a single servlet for everything.

In this guide, you will learn the two ways to achieve Servlet Collaboration — RequestDispatcher (using include() and forward()) and sendRedirect() — with complete runnable examples, output screenshots, and the key differences between them.

Table of Contents

• What is Servlet Collaboration?
• 1. RequestDispatcher Interface
• RequestDispatcher — Example
• RequestDispatcher — Output
• 2. sendRedirect() Method
• sendRedirect() — Example
• sendRedirect() — Output
• RequestDispatcher vs sendRedirect Comparison
• Frequently Asked Questions
• Conclusion

What is Servlet Collaboration?

Servlet Collaboration is the mechanism by which one servlet communicates with another servlet and passes information or data between them. This is useful when you want to split responsibilities across servlets — for example, one servlet validates input while another handles the response.

There are two ways to achieve Servlet Collaboration:

1. Using the RequestDispatcher interface — server-side forwarding
2. Using the sendRedirect() method — client-side redirection

1. RequestDispatcher Interface

Key facts about the RequestDispatcher interface:

1. RequestDispatcher is an interface in the javax.servlet package.
2. You get an instance of RequestDispatcher from the HttpServletRequest object:

   RequestDispatcher rd = request.getRequestDispatcher("/pageName");

3. No new request is created when forwarding to another page. The same request and response objects are reused.
4. RequestDispatcher is used to call pages within the same project (internal resources only).
5. It has two methods:
   • include(request, response)
   • forward(request, response)
6. include() adds the target page's output to the current servlet's response — both outputs appear in the final response.
7. forward() transfers control completely to the target page — the current servlet's output is not included.
8. RequestScope, SessionScope, and ApplicationScope are all applicable with RequestDispatcher.
9. All processing is done at the server side — the browser is not aware that a forward happened.

RequestDispatcher — Example

Below is the flow diagram for the RequestDispatcher example:

FirstPage.java

This servlet reads the name parameter. If empty, it uses include() to show the form again. Otherwise, it uses forward() to pass control to SecondPage.

package com.deepsingh44.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/first")
public class FirstPage extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    private void doProcess(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {

        String name = req.getParameter("name");

        if (name.isEmpty()) {
            resp.getWriter().print("Please enter name");
            req.getRequestDispatcher("index.html").include(req, resp);
        } else {
            req.setAttribute("name", name);
            req.getRequestDispatcher("second").forward(req, resp);
        }
    }
}

SecondPage.java

This servlet reads the name attribute set by FirstPage and prints a welcome message. Since forward() uses the same request object, the attribute is available.

package com.deepsingh44.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/second")
public class SecondPage extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    private void doProcess(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {

        String name = req.getAttribute("name").toString();
        resp.getWriter().print("Welcome, " + name);
    }
}

index.html

<form action="first">
    <p>
        Enter Name: <input type="text" name="name">
    </p>
    <p>
        <input type="submit" value="submit">
    </p>
</form>

RequestDispatcher — Output

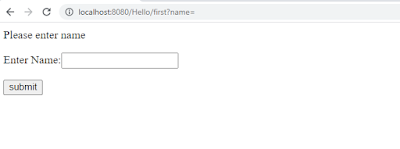

Below are the output screenshots for the RequestDispatcher example:

---

---

---

---

2. sendRedirect() Method

Key facts about the sendRedirect() method:

1. sendRedirect() is a method of the HttpServletResponse object.
2. With sendRedirect(), a new request is always created — the browser issues a fresh request to the target URL.
3. It can redirect to both internal pages (within the same app) and external URLs (e.g., google.com).
4. RequestScope is NOT applicable with sendRedirect() — the original request is discarded.
5. Only SessionScope and ApplicationScope are applicable — because those live outside the request lifecycle.
6. Processing happens at the client side — the browser receives a 302 status and makes a new request.

sendRedirect() — Example

Below is the flow diagram for the sendRedirect example:

FirstPage.java

Instead of using request scope, this version stores the name in ServletContext (application scope), because request scope is lost after redirect.

package com.deepsingh44.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/first")
public class FirstPage extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    private void doProcess(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {

        resp.setContentType("text/html");
        String name = req.getParameter("name");

        if (name.isEmpty()) {
            resp.getWriter().print("Please enter name");
            req.getRequestDispatcher("index.html").include(req, resp);
        } else {
            req.getServletContext().setAttribute("name", name);
            resp.sendRedirect("second");
        }
    }
}

SecondPage.java

This servlet reads name from ServletContext (application scope) — which is the only scope that survives a redirect.

package com.deepsingh44.controller;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/second")
public class SecondPage extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doProcess(req, resp);
    }

    private void doProcess(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {

        String name = req.getServletContext().getAttribute("name").toString();
        resp.getWriter().print("Welcome, " + name);
    }
}

index.html

<form action="first">
    <p>
        Enter Name: <input type="text" name="name">
    </p>
    <p>
        <input type="submit" value="submit">
    </p>
</form>

sendRedirect() — Output

Below are the output screenshots for the sendRedirect example:

---

---

---

---

---

RequestDispatcher vs sendRedirect Comparison

Feature	RequestDispatcher	sendRedirect()
New request created?	No	Yes
Can call external URLs?	No (same project only)	Yes
RequestScope available?	Yes	No
SessionScope available?	Yes	Yes
ApplicationScope available?	Yes	Yes
Processing side	Server side	Client side
URL in browser changes?	No	Yes
Typical use case	MVC view forwarding	Post-Redirect-Get pattern

Frequently Asked Questions

What is Servlet Collaboration in Java?

Servlet Collaboration means how one servlet communicates with another servlet and passes data between them. It is achieved in two ways: using the RequestDispatcher interface (include and forward methods) or using the HttpServletResponse.sendRedirect() method.

What is the difference between forward() and include() in RequestDispatcher?

forward() transfers control completely to the target resource — the current servlet's output is discarded. include() adds the target resource's output to the current servlet's response — both outputs are combined in the final response.

What is the difference between RequestDispatcher and sendRedirect()?

RequestDispatcher forwards within the same application, no new request is created, and request scope attributes are preserved. sendRedirect() sends a 302 response to the client, which then makes a new request to the target URL — so request scope is lost. sendRedirect() can also redirect to external URLs.

Which scopes are available in RequestDispatcher and sendRedirect?

RequestDispatcher supports RequestScope, SessionScope, and ApplicationScope. sendRedirect() only supports SessionScope and ApplicationScope — RequestScope is not available because the original request object is discarded after the redirect.

Is processing done on the client side or server side?

RequestDispatcher performs all forwarding on the server side — the browser is not aware of it. sendRedirect() performs the redirect on the client side — the browser receives the 302 response and issues a brand new request to the target URL.

Conclusion

Servlet Collaboration lets multiple servlets work together to handle a single user request. You learned the two approaches — RequestDispatcher (server-side, no new request, supports request scope) and sendRedirect() (client-side, new request, only session/application scope).

Choose RequestDispatcher when you want MVC-style view forwarding with shared request data. Choose sendRedirect() when you want a fresh URL, need to redirect to an external site, or are implementing the Post-Redirect-Get pattern to avoid form resubmission.
